Dayun multi-rotor agricultural drone 50A
DYDX-50A
The Dayun Agricultural Series of plant protection drones boasts a lightweight and sturdy 50L body, capable of carrying intelligent spraying equipment and ensuring stable operation across vast fields. The cleverly designed oblique folding joints distribute stress effectively, resulting in a more compact body after folding while maintaining structural strength. When unfolded, the drone maintains a stable posture and remains stable even during heavy-duty operations. After being stored, its volume is significantly reduced, enhancing portability and perfectly meeting the needs of agricultural drones for high-frequency transition and multi-field operations.
Quantity
The Dayun Agricultural Series of plant protection drones boasts a lightweight and sturdy 50L body, capable of carrying intelligent spraying equipment and ensuring stable operation across vast fields. The cleverly designed oblique folding joints distribute stress effectively, resulting in a more compact body after folding while maintaining structural strength. When unfolded, the drone maintains a stable posture and remains stable even during heavy-duty operations. After being stored, its volume is significantly reduced, enhancing portability and perfectly meeting the needs of agricultural drones for high-frequency transition and multi-field operations.(multi-rotor UAV , Agricultural drone)
| Item | Parameter | Item | Parameter |
|---|---|---|---|

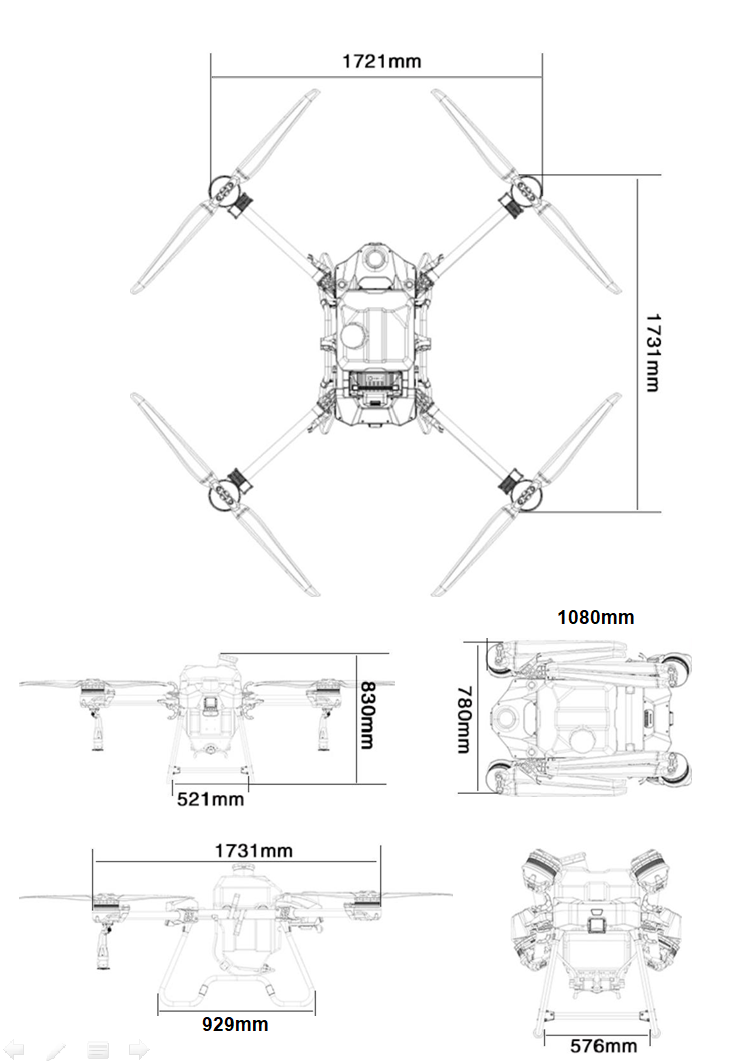

| Unfolded Dimension | 1721*1731* 830mm | Folded Dimension | 780 *1080 * 830mm |
| Airframe Weight | 35kg | Wheelbase | 2200mm |
| Spray Tank Load | 50L | Spreading Tank Load | 80L |
| Maximum Takeoff Weight | 99kg | Nozzle | 2 × Centrifugal Nozzles |
| Effective Spraying Width | 6-10m | Spray Flow Rate | 12L/min |
| Operation Efficiency | 70 mu / flight | Battery Capacity | 14S 30000mAh |
| Operating Voltage | 60.9V (14S) | Empty Flight Endurance | 18 min |
| Full-load Flight Endurance | 7 min | Waterproof Rating | IP6 |
